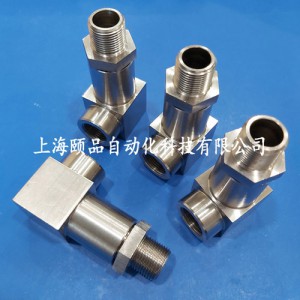

 90° Degree Swivel Adaptor Male to Female Brass ATEX/IECEx/INMETRO/Exd/Exe

The 90° swivel adaptor (types FP, FQ, FR) has been designed to allow a full 360° choice of cable entry/exit positions. This enables the installer to run the cable in any direction which greatly improves ease of installation in confined or difficult situations. The cable entry/exit can be aligned without the over or under torque compromise imposed by the direction of the cable. The in-line type (types FA, FC, FD) allows independent connection at both ends.

Certifications and compliances

Code of protection categories ATEX: I M2, Ex d IMb, Ex e I Mb, (not aluminium) or IIGd Ex d IIC Gb, Ex e IIC Gb, Ex tb IIIC Db

IECEx: Ex d Ex e IIC Gb, Ex d Ex e IM (not aluminium), Ex tb IIIC Db, IP 6X

INMETRO: Ex d IIC Gb, Ex e IIC Gb, Ex d I Mb, Ex e Mb, Ex tb IIIC Db IP6X

Compliance standards ATEX: EN 60079-0, EN60079-1, EN 60079-7, EN 60079-31

INMETRO: ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1, ABNT NBR IEC 60079-7, ABNT NBR IEC 60079-31 IECEx: IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31

Certificate details ATEX: Sira 10ATEX1056U, ITS16ATEX101337U IECEx: IECEx SIR 10.0025U, IECEx ITS16.0010U INMETRO: NCC 12.0764X

Temperature Temperature range: -20°C to +60°C Exd, -50°C to +200°C Exe Ingress protection (IP): Independently tested to IP66 / IP68 when fitted in accordance to manufacturer’s instructions.
