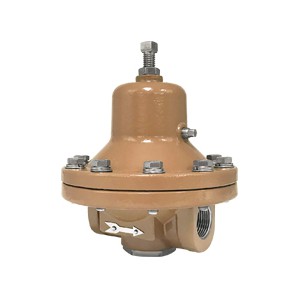

CASHCO凱�？� D-57型 2D4-5M37-11C0000D

作為市場上***通用的調節器之一，D型可用于蒸汽、空氣、水、化學品等。一些***常用的應用包括蒸汽、空氣、油墨、O2(常溫)、O2(低溫)和NACE服務。更大尺寸見型號DL。

以下是對適用于氯氣或液體應用的可靠結構的描述。單位可用尺寸為1/2英寸至1英寸(DN15至25英寸)。

SPECIAL CONSTRUCTION

Trim Designation No. “M3”

Plug ............................... Monel with Fluorocarbon

Elastomer Seat

Cylinder ......................... Monel

Cylinder Gasket ............ PTFE

Diaphragm .................... Gylon 3522 (PTFE)

Pusher Plate ................. Monel

Body Cap ...................... Monel

Spring ........................... Inconel X-750

Opt-57

Special Cleaning for Cl2 Service per Cashco

Spec. No. S-1589.

Epoxy painted.

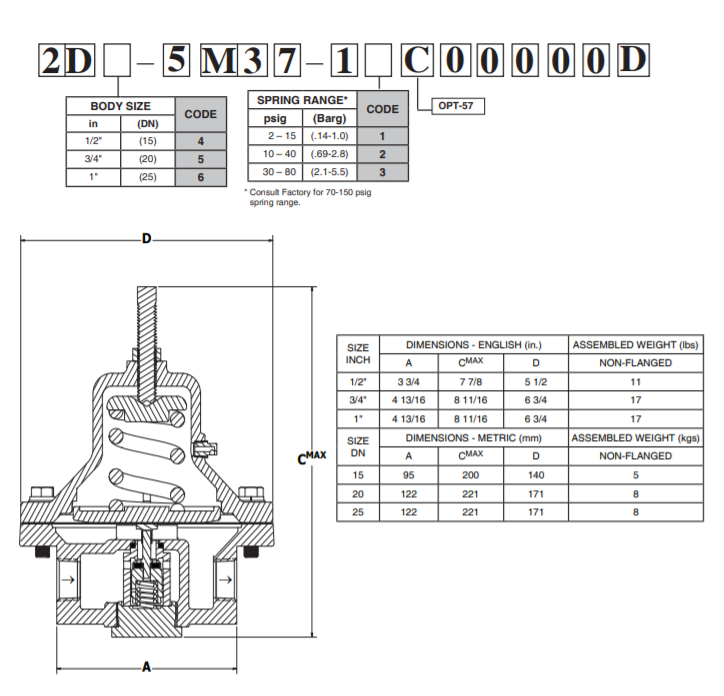

The following is a description of a proven con struc tion for chlorine gas or liquid service. Units are available

in sizes 1/2"–1" (DN15–25).

STANDARD CONSTRUCTION

Body .............................. Carbon Steel *

Spring Chamber ............ Carbon Steel *

Flange Bolting ............... 304 Stainless Steel

...................................... ASTM F593 Group 1

Spring Button ................ Cast Iron

Range Spring ................ Epoxy-coated Steel

Pressure Plate .............. Cast Iron

Adjusting Screw ............ Stainless Steel

Jam Nut ........................ Stainless Steel

* ASTM A216 Gr. WCB

PRESSURE - TEMPERATURE RATING

Inlet: 300 psig (20.7 barg) -20 to +300oF (-29 to +149oC)

Outlet: 100 psig (6.9 barg) -20 to +300oF (-29 to +149oC
