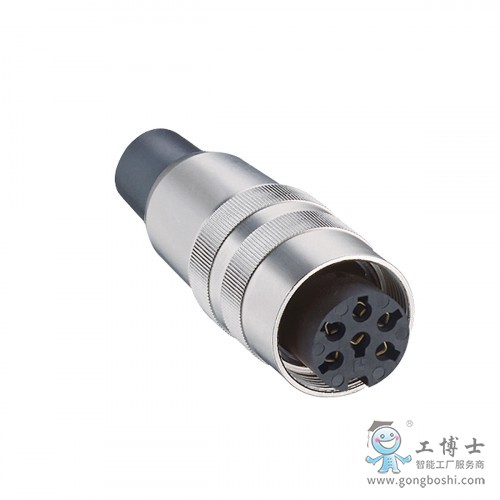

德國隆堡LUMBERG圓形連接器螺紋接頭KV...-8
圓形連接器螺紋接頭M16 acc。IEC 61076-2-106, IP40/IP68
套接字acc。符合IEC 61076-2-106, IP40，直型，帶螺紋連接，焊接端子和短彎曲保護
環境條件
Temperature range:-40 °C/+85 °C
物料
Insulating body:PA GF, V-0 according to UL94
Contact bush:CuZn, silver-plated and flash gold-plated (3-8 poles)
CuZn, pre-nickel and gold-plated (12 poles)
Sleeve:PC, HB according to UL94
Strain relief:steel, nickel-plated
Housing:CuZn, nickel-plated
Bend protection sleeve:TPE
Screw:steel, nickel-plated
機械數據
Insertion force/contact:≤ 5.0 N *1
Withdrawal force/contact:≥ 1.2 N (3-8 poles)
≥ 0.9 N (12 poles) *2
Protection class:IP40 *3
1) measured with a polished steel pin, nominal thickness 1.5 mm (1.0 mm with 12 poles)
2) measured with a polished steel pin, nominal thickness 1.5 mm (1.0 mm with 12 poles)
3) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart
可連接的電線用于焊接連接
Section:≤ 0.75 mm² (AWG 20)
(3-8 poles)
≤ 0.25 mm² (AWG 24)
(12 poles)
Cable diameter:6–8 mm
電氣數據（Tamb 20 °C）
Contact resistance:≤ 5 m
Rated current:5 A (Tamb 40 °C, 3-8 poles)
3 A (Tamb 40 °C, 12 poles)
Rated voltage:with pollution degree 1:
300 V (versions 30, 40, 50/6, 60, 70)
100 V (versions 50, 71, 80, 81)
160 V (Polbild 120)
with pollution degree 2:
250 V (versions 30, 40)
32 V (versions 50, 71, 80, 81)
160 V (versions 50/6, 60, 70, 120)
Rated impulse voltage:1500 V (versions 30, 40, 50/6, 60, 70, 120)
500 V (versions 50, 71, 80, 81)
型號 芯數 包裝單位（套）***小交貨（套）
KV 30-8 3 50 500
KV 40-8 4 50 500
KV 50-8 5 50 500
KV 50/6-8 5 50 500
KV 60-8 6 50 500
KV 70-8 7 50 500
KV 71-8 7 50 500
KV 80-8 8 50 500
KV 81-8 8 50 500
KV 120-8 12 50 500
