一、用途 Application

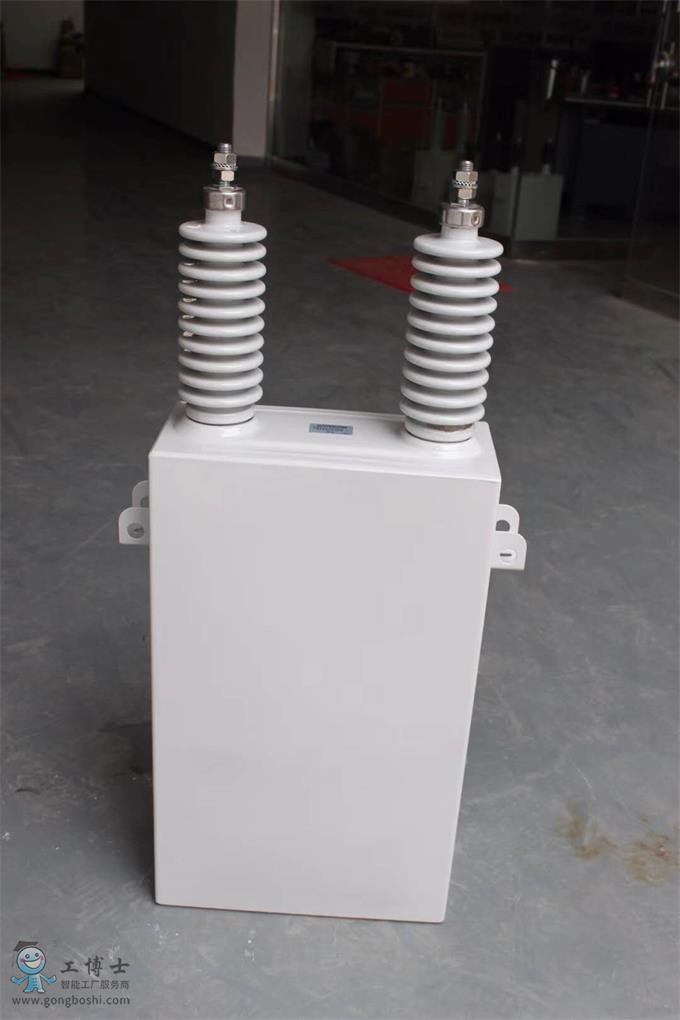

　　 高電壓并聯電容器主要應用于50Hz或60Hz交流電力系統以改善功率因數。產品性能符合GB3983.2-89《高電壓并聯電容器》及國際標準IEC60871-1。

　　High voltage shunt capacitor is mainly used in the A.C,Power systemwith 50Hz or 60Hz to improve factor,The performance conforms to GB3983.2-89《High voltage shunt capacitor》and IEC60871-1.

二、使用條件 Seruice Conditions

1.海拔高度不超過1000m，環境空氣溫度-40℃~+40℃。

2.安裝場所無劇烈的機械振動、無有害氣體及蒸汽、無導電性及爆炸性塵埃。

3.連續運行電壓1.0Un，長期過電壓***高值不超過1.1Un。

4.穩態過電流（包括諧波電流）不超過1.43In。

5.***大允許容量不超過1.35Qn。

1.Altitude:less 1000m; Ambicnt Temperature:-40℃~+40℃.

2.No violcnt mcchanical vibration,no harmful gas and vapor,no electric,and cxplosive dust in location.

3.Continuous operation voltage:1.0Un,long-term max,Over-voltage:less 1.1Un.

4.Stable over-current(including harmonics current)less 1.43In.

5.Max.Pcrmissible output:less 1.35Qn.

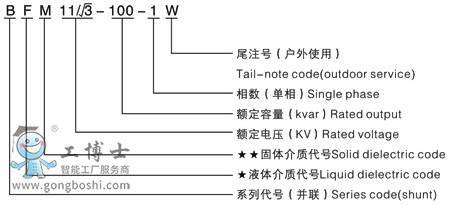

三、型號說明 Model meanings

★液體介質代號 Liquid dielectric code

W-浸漬劑為烷基苯 1mpregnant isAB

★★固體介質代號 Solid dielectric code

F-浸漬劑為二芳基乙烷 1mpregnant is PXE

A-浸漬劑為芐基甲苯 1mpregnant is M/D BT

F-聚丙烯薄膜和電容器紙復合介質 Mixed dielectric of pp frlm and paper

M-全薄膜介質 Full-film dielectric
