寶得156767 用于氣動系統的兩位五通脈沖電磁閥和三位五通電磁閥 類型0461

點擊圖片查看原圖
品牌: burkert
類型: 0461
單價: 面議
所在地: 上海
有效期至: 長期有效
最后更新: 2020-06-29 09:37
瀏覽次數: 309
詢價
店鋪基本資料信息

產品詳細說明

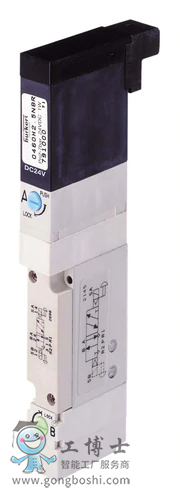

 0461 型先導閥由一個帶雙線圈的先導電磁閥和一個氣動閘閥組成。作用原理支持在能耗低、開關時間短的條件下,實現對高壓的開關操作。所有閥門均標配一個手動操作裝置。
名稱
金額
單位
Type 0461
Product sub-group Pneumatic valves
Valve function L - middle position all port connections closed - inlet port 1, outlet port 4 and 2, vent of outlet ports to 5 respectively 3
Valve function pulse version 3-conductor version with common plus pole
Fluidic port connection number 5
Valve function number of switching positions 3
Valve function manual actuation Yes
Valve function manual actuation type Rotary level and Key button combined
Valve function manual actuation material PA (Polyamide)
Valve function manual actuation stop Yes
Valve function manual actuation screw slot Yes
Pneumatic pilot valve 1 Plunger-type system integrated
Valve piloting type Electric
Return type Pneumatic spring + mechanical spring
Pilot control orifice (mm) 0,5 mm
Pilot control material medium-contacting PA (Polyamide)
Pilot control material environment-contacting PA (Polyamide)
Pilot control seal material NBR (Nitrile rubber)
Main valve operating principle Slide valve
Main valve orifice 1 (P) (mm) 4 mm
Main valve wetted material PA (Polyamide)
Main valve material environment-contacting PA (Polyamide)
Main valve seal material NBR (Nitrile rubber)
Supply connection type Flanged
Flange FM19
Working connection type Flanged
Working connection position on pneumatic module
Working connection flange pattern FM19
Coil size 10 mm
Electrical power consumption min 0,4 W
Electircal power consumption max. 0,4 W
Coil wiring LED No
Coil wiring overvoltage protection without
Coil wiring rectifier No
Coil wiring polarity protection No
Coil wiring polarity recovery diode No
Coil wiring polarity recovery diode redundant No
Power reduction integrated No
Electrical connection sort Rectangular plug 2,54 mm, 3-pin
Cable plug in delivery not included
Electrical connection position Supply side
Electrical connection polarity Irrelevant
Electrical connection number of contacts 3
Voltage / rated voltage 24 V
Voltage / rated voltage 24 V
Protection type (IP max. with suitable connector) IP20
AC voltage No
DC voltage Yes
Battery voltage Yes
Nominal pressure min 2 bar
Nominal pressure max 7 bar
Temperature environment min 5 °C
Temperature environment max 50 °C
Temperature medium min 5 °C
Temperature medium max 50 °C
Mounting type Metric screws
Mounting dimensions M2,5 x 40
Mounting material Stainless steel
Switch time open max. 20 ms
Switch time close max. 50 ms
Add-on dimension 1 16,5 mm
QNn value (gas) 500 l/min
Nominal operation/Duty cycle 100 %
