TESCOM 54-2300系列 背壓調壓閥-艾默生EMERSON

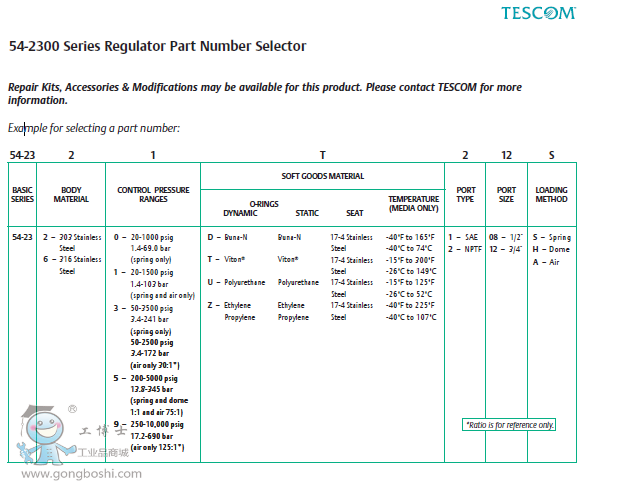

TESCOM 5432-21T212S,5432-21T2125H,5432-21T212A,5432-21T208A 背壓調壓閥

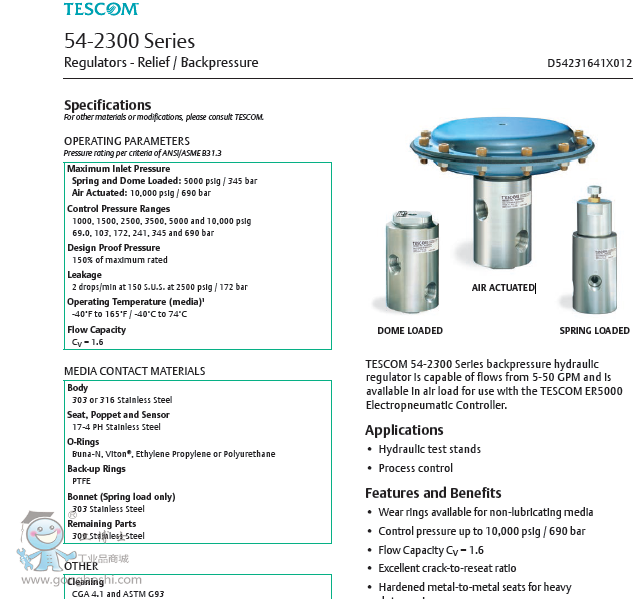

TESCOM 54-2300 Series backpressure hydraulic regulator is capable of flows from 5-50 GPM and is available in air load for use with the TESCOM ER5000 Electropneumatic Controller.
Applications
• Hydraulic test stands
• Process control
Features and Benefits
• Wear rings available for non-lubricating media
• Control pressure up to 10,000 psig / 690 bar
• Flow Capacity Cv = 1.6
• Excellent crack-to-reseat ratio
• Hardened metal-to-metal seats for heavy duty service
• Choice of spring, dome and air actuated loading
• Standard side mounting holes
