安全柵是倍加福的核心產品。我們提供全系列的產品用于保護危險區中的電信號。本質安全模塊主要由限能齊納柵和電氣隔離組成。倍加福公司產品滿足各種應用，適合多種安裝。

Zener Barriers – Cost Saving and Easy Mounting Ex-Protection



Zener barriers provide cost saving Ex-protection for various applications in process automation systems. The amount of energy transferred to the hazardous location is limited to a safe level incapable of igniting the explosive atmosphere.

Z-system zener barriers from Pepperl+Fuchs are directly mounted on a 35 mm DIN-Rail. Through accessories, the required grounding can be done directly on the DIN mounting rail.

• Fast mounting on the DIN-rail
• Grounding directly connected with DIN-rail
• Separation of field loop by removing the fus

Z-system zener barriers are available with high density up to 2 channels / 12,5 mm width. Variants with field replaceable fuses provide a convenient means of disconnecting or open-circuiting the instrument loop without interfering with the wiring, making commissioning and maintenance operations much easier.

General specifications

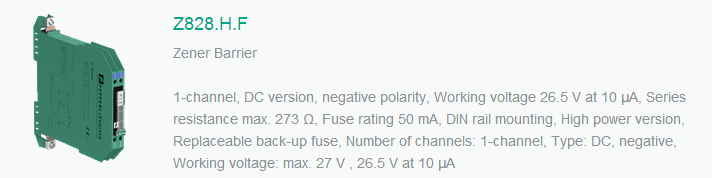

Z828.H.F相關技術參數：

General specifications
Type		DC version, negative polarity
Electrical specifications
Nominal resistance		240 Ω
Series resistance		max. 273 Ω
Fuse rating		50 mA
Hazardous area connection
Connection		terminals 1, 2
Safe area connection
Connection		terminals 7, 8
Working voltage		max. 27 V , 26.5 V at 10 µA
Conformity
Degree of protection		IEC 60529
Ambient conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Storage temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Degree of protection		IP20
Connection		screw terminals , max. core cross-section 2 x 2.5 mm2
Mass		approx. 150 g
Dimensions		12.5 x 115 x 110 mm (0.5 x 4.5 x 4.3 inch)
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EC-Type Examination Certificate		BAS 00 ATEX 7096 , for additional certificates see www.pepperl-fuchs.com
	Group, category, type of protection	II (1)GD, I (M1) [Ex ia] IIC, [Ex iaD], [Ex ia] I (-20 °C ≤ Tamb ≤ 60 °C) [circuit(s) in zone 0/1/2]
Statement of conformity		TÜV 99 ATEX 1484 X , observe statement of conformity
	Group, category, type of protection, temperature class	II 3G Ex nA II T4 [device in zone 2]
Directive conformity
	Directive 94/9/EC	EN 60079-0:2012, EN 60079-11:2012, EN 60079-15:2010
International approvals
FM approval
	Control drawing	116-0118
UL approval
	Control drawing	116-0355 (cULus)
CSA approval
	Control drawing	116-0119



 倍加福齊納式安全柵模塊產品型號參考：

Z705 Z779.F Z887 Z966.F

Z710 Z779.H Z888 Z966.H

Z713 Z779.H.F Z896 Z967

Z715.F Z786 Z905 Z978

Z722 Z787 Z910 Z040

Z728 Z787.F Z915 Z041

Z728.CL Z787.H Z915.1K Z042

Z728.F Z787.H.F Z928 Z810.CL

Z728.H Z788 Z954 Z813

Z728.H.F Z788.H Z955 Z857

Z731 Z788.R Z960 Z864

Z755 Z789 Z960.F Z865

Z757 Z796 Z961 Z865.F

Z764 Z810 Z961.F Z872

Z765 Z822 Z961.H Z879.F

Z765.F Z828.H.F Z964 Z879.H.F

Z772 Z878 Z965 Z886

Z778 Z888.H Z966 Z887.F

Z887.H.F Z922 Z715.1K Z715
