倍加福線纜V1-G-2M-PVC現貨
Pepperl+Fuchs offers you a complete portfolio of robust sensor-actuator cables for machine and plant operation. As an ideal addition to our proven industrial sensors, these sensor-actuator cables are available in many variations. The combination of different threading and wire types allows the perfect match for your application. Due to our optimized and highly-flexible manufacturing, customer-specific solutions are tailored and quickly delivered.
In addition to M8 and M12, the range of sensor-actuator cables contains numerous other common threading types like 1/2“, 7/8“, M9, or M23. Gas-proof and gold-plated crimp connections increase vibration resistance and durability. Vibration resistant knurled nuts enable reliable connection and fast and easy tool assembly.
The portfolio of wire types from certified European production ranges from solid and economical PVC sheathings, durable and highly-flexible PUR sheathings, to POC sheathings specifically built for welding areas. For challenging outdoor applications, PUR-O sheathingsoffer an ideal solution. Additional cable features cover steel nuts, LEDs as operating and function indicators, 360 degree shielding, cURus certifications, and NAMUR suitability. Types of protection IP67, IP68, and IP69 also qualify the ruggedness of our sensor-actuator cables.

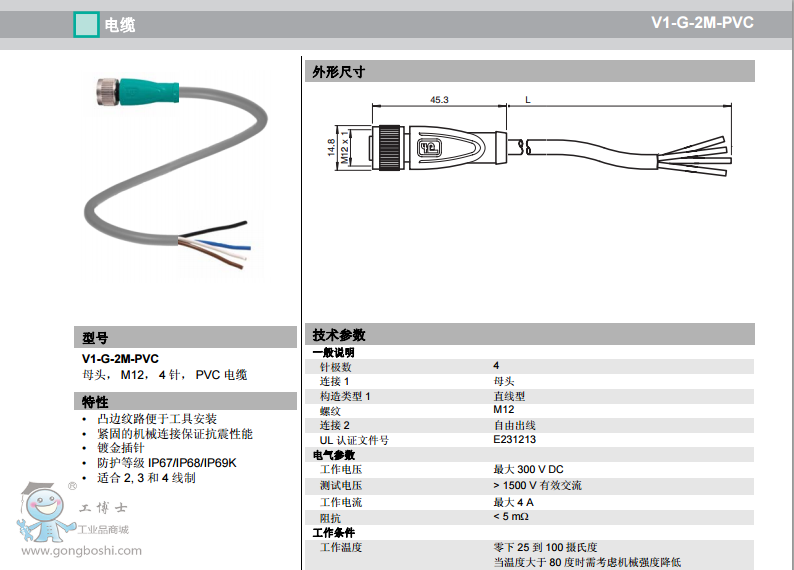

倍加福V1-G-2M-PVC產品說明書
| 一般特性 |
| 極數 |
4 |
| 接口1 |
插座 |
| 接口設計1 |
直的 |
| 線纜末端1 |
M12 |
| 接口2 |
電纜尾部沒有東西 |
| 電氣特性 |
| 工作電壓 |
max. 250 V AC/DC |
| 工作電流 |
max. 4 A |
| 體積電阻 |
< 5 mΩ |
| 與標準和規范體系的一致性 |
| 符合標準 |
|
| |
防護等級 |
EN 60529:2000 |
| |
標準 |
IEC 61076-2-101:2008 |
| |
可燃性 |
Grip: UL 94 |
| Lead: IEC 60332-2-2:2004 |
| 周圍環境 |
| 環境溫度 |
Body: -40 ... 90 °C (-40 ... 194 °F) |
| cable, fixed: -25 ... 70 °C (-13 ... 158 °F) |
| cable, flexing: -5 ... 70 °C (23 ... 158 °F) |
| 污染程度 |
3 |

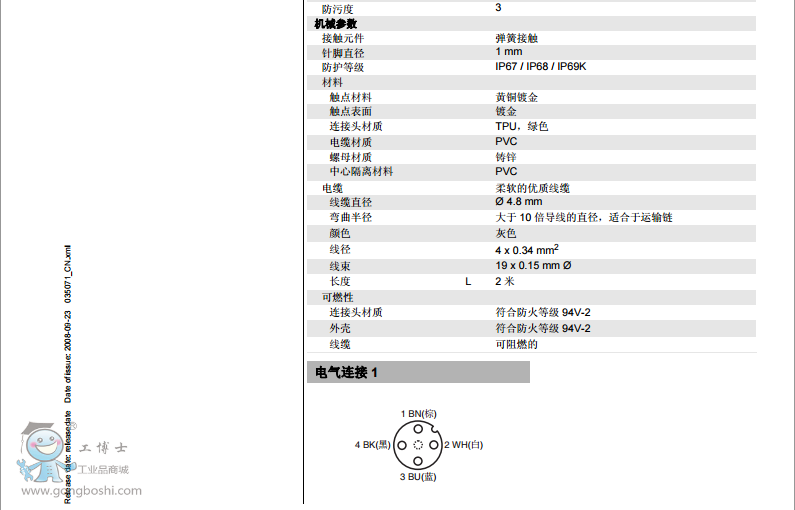

| 機械特性 |
| 接觸原理 |
彈簧型插座 |
| 針直徑 |
1 mm |
| 防護等級 |
IP67/IP68/IP69K |
| 材料 |
|
| |
接觸體 |
銅鋅/金 |
| |
接觸面 |
金 |
| |
柄 |
TPU，黑色 |
| |
電纜 |
PVC |
| |
開槽螺母 |
鍍鋅 |
| |
內部絕緣 |
PVC |
| 電纜 |
細軟，柔性 |
| |
外殼直徑 |
∅ 4.8 mm |
| |
彎曲半徑 |
> 10 x電纜直徑，移動 |
| |
顏色 |
灰色 |
| |
線芯 |
4 x 0.34 mm2 |
| |
導體結構 |
19 x 0.15 mm ∅ |
| |
長度 |
2 m |
| 可燃性 |
|
| |
連接材料 |
HB |
| |
外殼 |
V-2 |
| |
電纜 |
耐火 |
| 倍加福傳感器接插件線纜型號參考 |
| V1-G-10M-PUR |
V1-W-E2-5M-PUR |
V31-WM-5M-PVC |
| V1-G-10M-PUR-V1-G |
V15-G-2M-PUR |
V31-WM-5M-PUR |
| V1-G-10M-PVC |
V15-G-2M-PVC |
V31-WM-2M-PVC |
| V1-G-2M-PUR |
V15-G-5M-PUR |
V31-GM-5M-PVC |
| V1-G-2M-PUR-V1-G |
V15-G-5M-PVC |
V31-GM-5M-PUR |
| V1-G-2M-PUR-V1-G |
V15-W-15M-PUR |
V31-GM-2M-PVC |
| V1-G-2M-PVC |
V15-W-2M-PUR |
V1-W-A2-5M-PVC |
| V1-G-5M-PUR |
V15-W-2M-PVC |
V1-W-E2-2M-PVC |
| V1-G-5M-PUR-V1-G |
V15-W-5M-PUR |
V1-W-N-2M-PUR |
| V1-G-5M-PVC |
V15-W-5M-PVC |
V1-W-N-5M-PUR |
| V1-G-5M-PVC-V1-G |
V19-G-2M-PUR-ABG |
V19-G-5M-PUR-ABG |
| V1-W-10M-PUR |
V3-GM-2M-PVC |
V17-G-5M-PUR |
| V1-W-10M-PVC |
V3-GM-5M-PUR |
V19-G-5M-PUR-ABG |
| V1-W-2M-PUR |
V3-WM-5M-PVC |
V1S-G-2M-PUR |
| V1-W-2M-PVC |
V3-WM-5M-PUR |
V31-WM-2M-PUR |
| V1-W-5M-PUR |
V1-G-2M-PVC-V1-G |
V1-G-10M-PUR-ABG-V1-W |
| V1-W-5M-PVC |
V1-G-2M-PUR-ABG |
V1-G-S-BK10M-PUR-A |
