• Very high static torques relative to the axis height • High torque & power densities and high overload capacity • Maximum dynamic response with acceleration values up to 100,000 rad/s2

詳細資料





The DT high torque motor series provides an innovative concept for highly dynamic applications. With a high pole count and optimized lamination geometry, these motors achieve an excellent power density and a system-efficient torque. With this motor series you receive a compact drive that is particularly well-suited for applications with a high cycle frequency. The motors are available in convection-cooled and liquid-cooled versions.

Developed with high reliability, high dynamic response, compact dimensions, and largely maintenance-free operation in mind, this series with its high overload capacity is ideal for peak loads.

Applications

· Positioning and actuating drives for drive tasks with or without gearbox

· For intermittent operation

· Variable-speed drive for continuous running

Connecting cable:

Copper conductor nominal cross-section 1.5 mm2

Power connector size 1

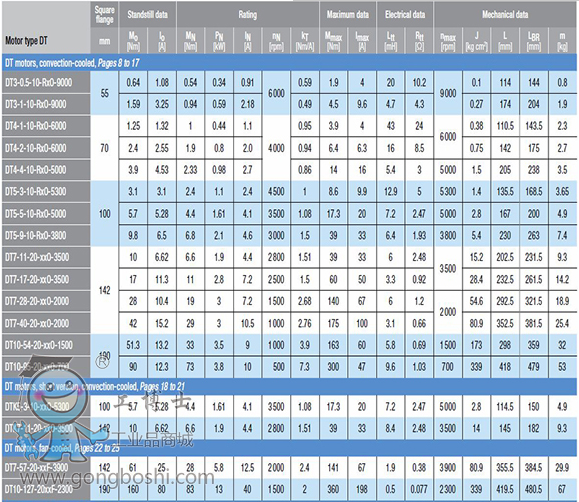

技術(shù)參數(shù)：
